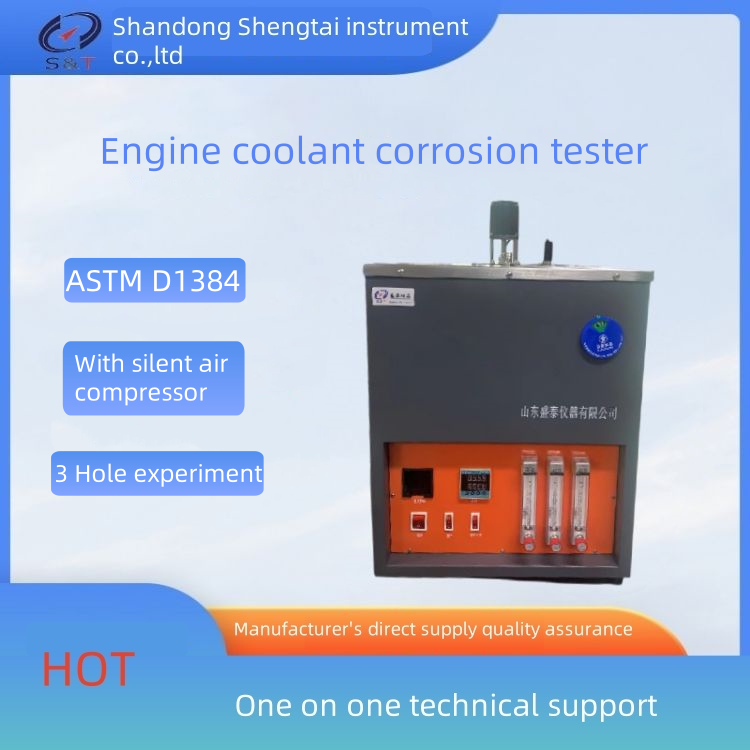

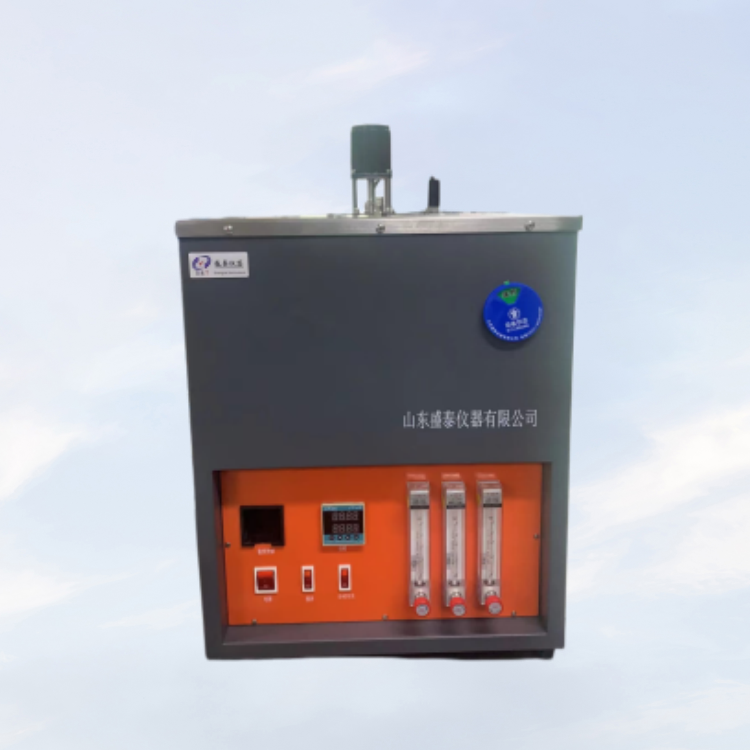

ASTM D1384 Antifreeze Coolant Corrosion Tester for Baking Cup Made of Heat-Resistant Glass

SH0085 antifreeze corrosion instrument is according to the law of the People's Republic of China petroleum and chemical industry standard SH/T0085 the engine cooling fluid corrosion measurement the requirements of the design and manufacture, suitable for according to the SH/T0085 standard measurement method, the determination of high boiling point and low boiling point engine coolant and concentrate on the extent of the typical specimens of metal corrosion, SH0085 corrosion tester upgraded instruments bring silent air compressor, no need to manually equipped with air.

ASTM D1384 Engine Coolant Corrosion Tester

ASTM D1384 Antifreeze Coolant Corrosion Tester

Engine Coolant Corrosiveness Tester

Coolant Corrosion Testing Equipment ASTM D1384

ASTM D1384 Engine Oil Tester for Coolant Oil

Main technical specifications

• Heating method: electric heating tube;
• Timing: display timer;
• Total power: 2.5kW;
• Flow rate(adjusted by flow meter): 100ml/min+/-10ml/min;
• Sand core glass gas diffusion head
• Can operate three groups of experiment at the same time
• Baking cup: made of heat-resistant glass.
• High-type nozzle-less 1000ml, in line with the requirements of SH/T0085 standard.
• gas diffusion tube: the diffusion head is made of sand core glass, and the pipe diameter is made of heat-resistant glass.
• reflux condensing pipe: water cooling type, sleeve length is not less than 400mm.

Technical parameters

Sample size and material:

• SH/T0085 engine coolant corrosion determination method (glassware method) set of test plates AST,M D1384
• 50x20x2mm (20# steel, brass sheet, copper sheet)
• 50x25x3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)
• Single center hole: φ7.0mm
• Supporting products:
• Brass washers, Insulation washers, Steel washers, Insulation bushing, Brass bracket
• Instrument size: 350 * 370 * 480mm Weight: 28kg
